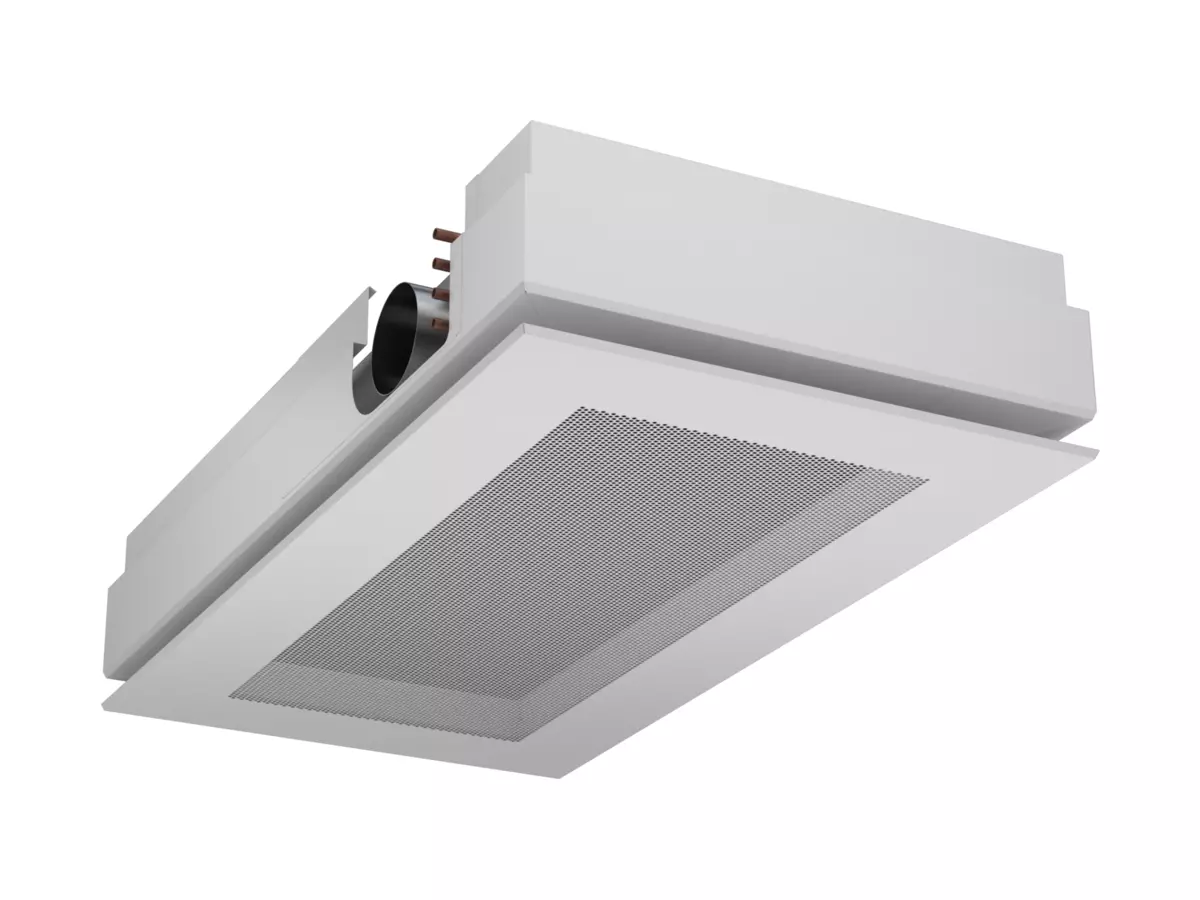

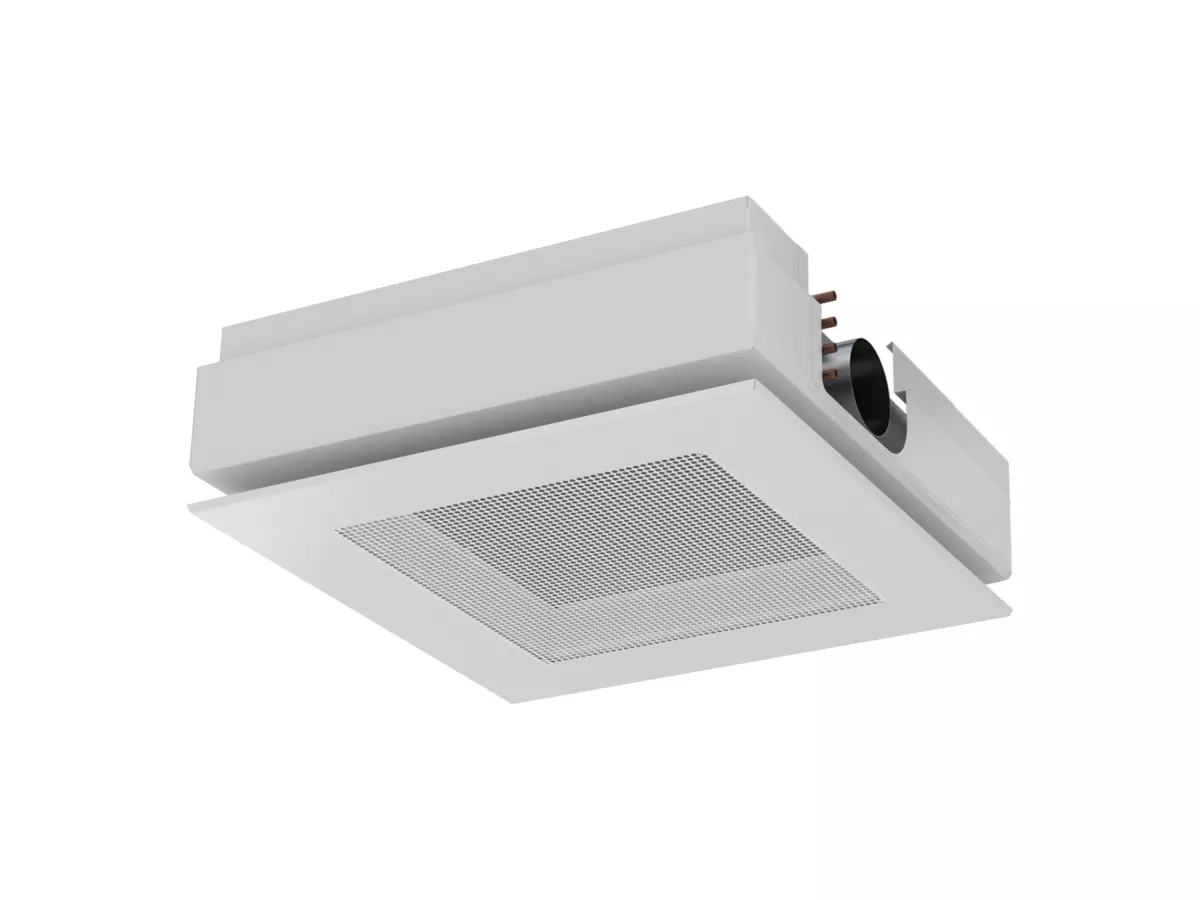

PARASOL EX

Suspended comfort module for cooling, heating and ventilation
  • Active, flexible, comfort modules for ventilation, cooling and heating
  • 4-way air distribution with flexible air flow rate and adjustable direction of air discharge for maximum comfort
  • Air diffusion for maximum comfort regardless of where it is installed in the room
  • For a uniform design in the room there is also a connection casing that covers the water pipes and air duct
  • Optional colours for both the comfort module and connection casing
  • Selectable connection side
  • Variable or constant flow regulation
  • Standard colour White RAL 9003
    • 5 alternative standard colours
    • Other colours upon request
Primary air flow:Up to 55 l/s
Pressure range:50 to 150 Pa
Total cooling capacity:Up to 1,930 W
Heating capacity – water:Up to 2450 W
Sizes:690 x 690 mm, 690 x 1290 mm
Height:250 mm
