WISE Parasol EX

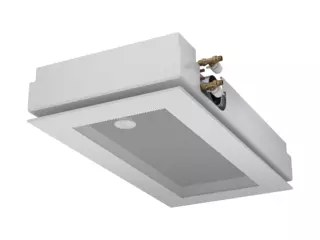

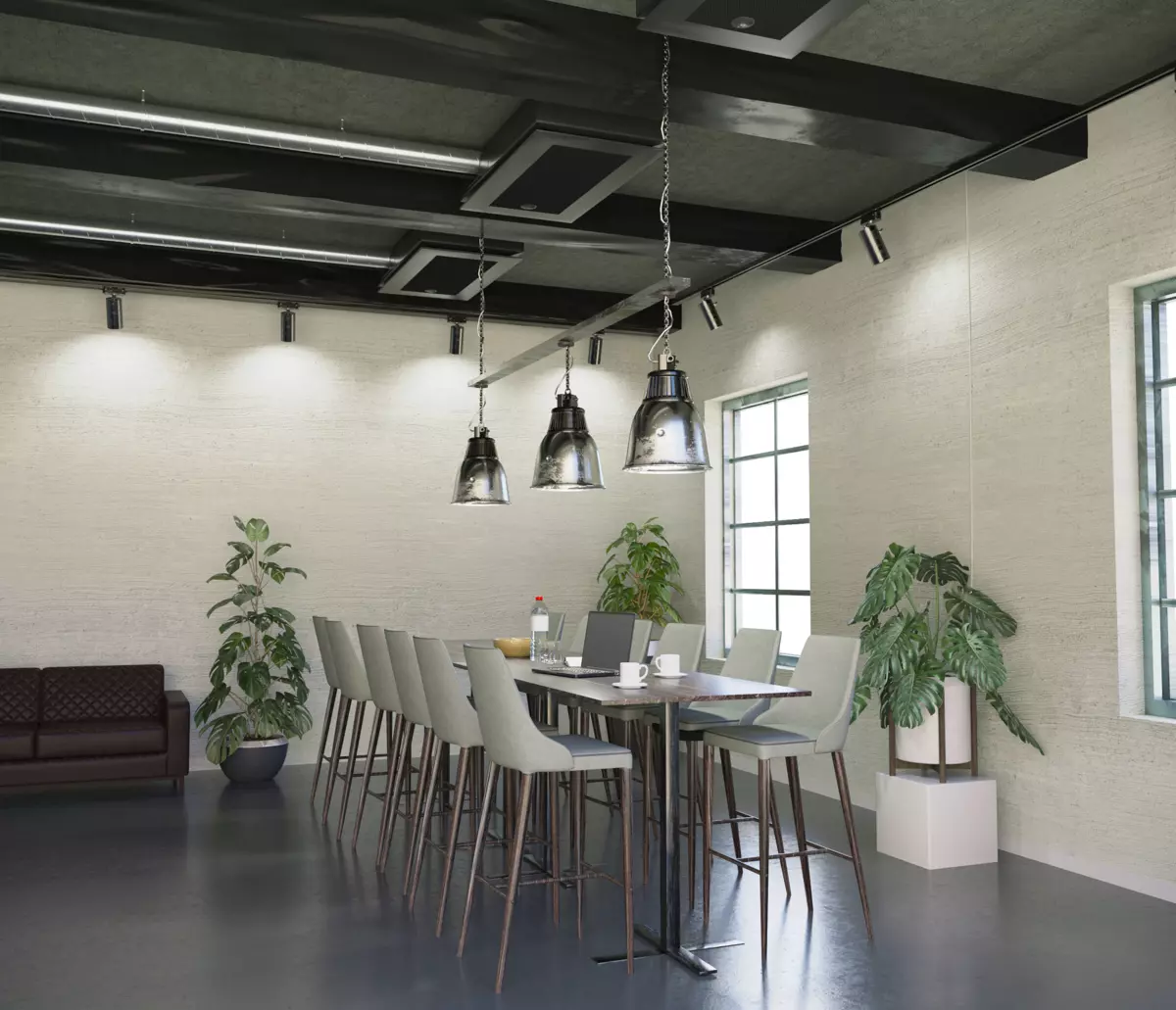

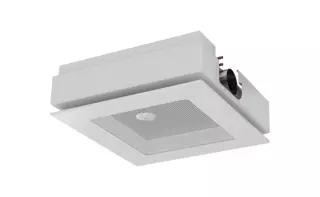

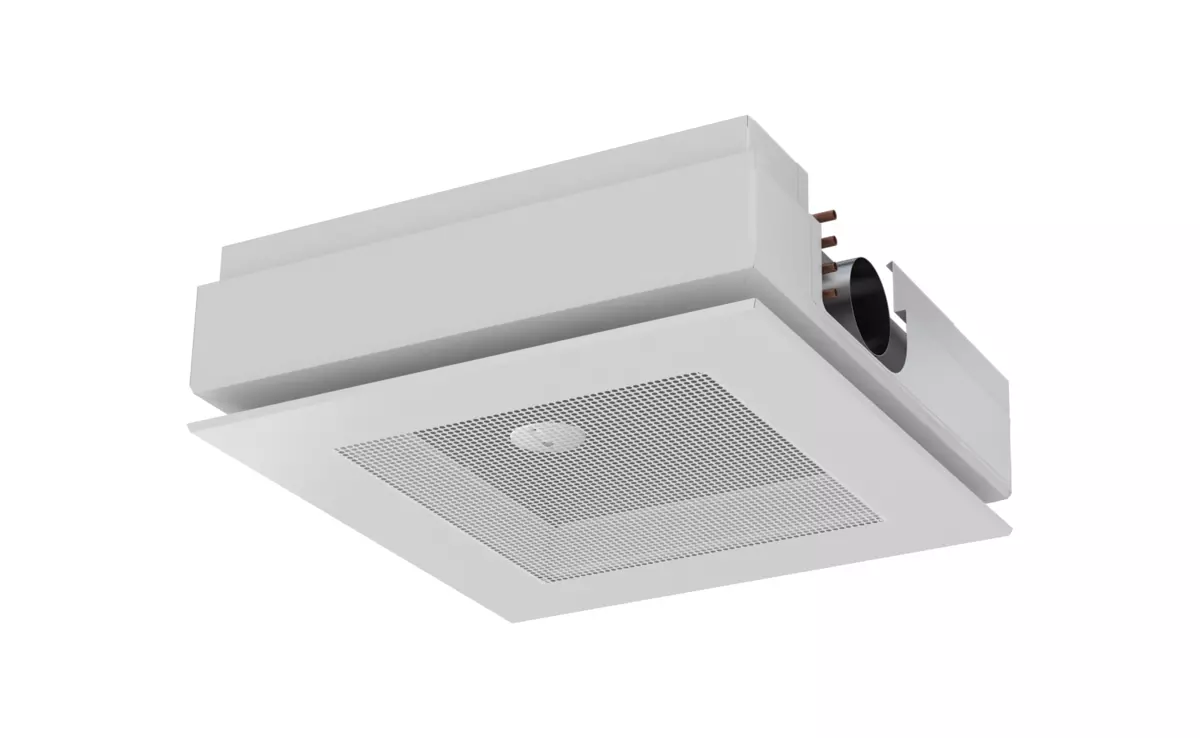

WISE Parasol EX is developed and designed to work in installations without a suspended ceiling. It can be installed on hangers or surface mounted. For WISE Parasol EX there is also a connection casing to cover ventilation ducts and water pipes and control equipment. Design cover, face plate and connection casing can be supplied in several different colours. Either to blend in with the surroundings, or to stand out and create a modern contrast.

The casing is manufactured in galvanized sheet steel (zinc plated). Face plate is in prepainted sheet steel RAL 9003, Coil in copper and aluminium.

Standard colour:

• RAL 9003 White (Signal white), gloss ratio 30 ± 6%

Alternative standard colours:

• RAL 7037 Grey (Dusty gray), gloss ratio 30-40%)
• RAL 9010 White (Pure white), gloss ratio 30-40%)
• RAL 9005 Black (Jet black), gloss ratio 30-40%)
• RAL 9006 Silver (White aluminium), gloss ratio 70-80%)
• RAL 9007 Grey (Grey aluminium), gloss ratio 70-80%)
• Other colours available on request

WISE Parasol EX consists partly of a base module and partly of a design module with face plate. The base module has four brackets for suspension. No extra assembly parts are required for surface mounting except for products with a Ø125 connection, and then the enclosed spacers are used when mounting. A threaded rod in each mounting bracket is used for suspended installation (Figure 13). Threaded drop rods and assembly fitting SYST MS M8 (Figure 14) are ordered separately.

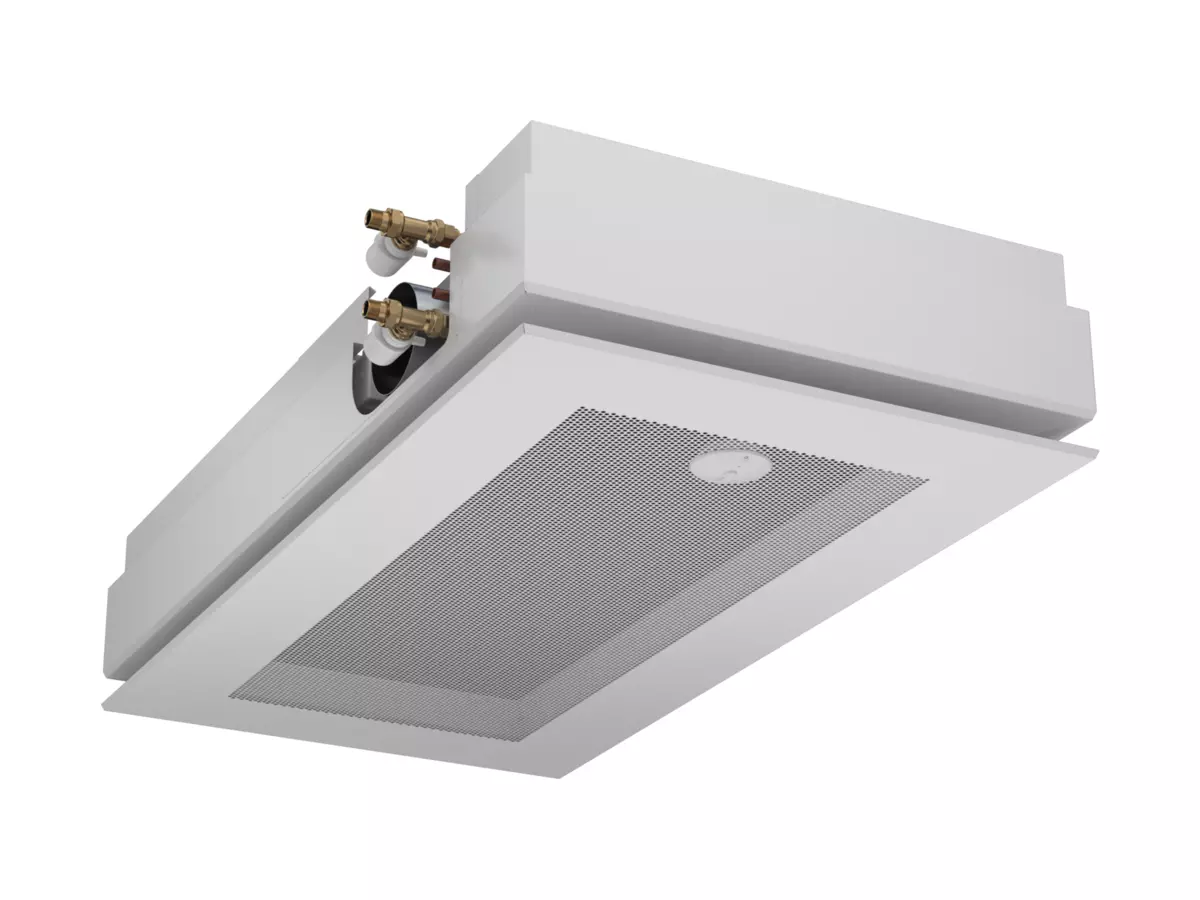

Installation, control equipment On the side of base module is a control plate with all control equipment assembled. On the same side are water and air connections too, which facilitates installation work and servicing. If the product is ordered with valve kits, these are supplied connected to the control unit and are temporarily attached next to the control unit with the help of cable ties. The cable ties are cut off and the valve kit is mounted on the pipes for cooling return and heating return according to the enclosed instructions for use.

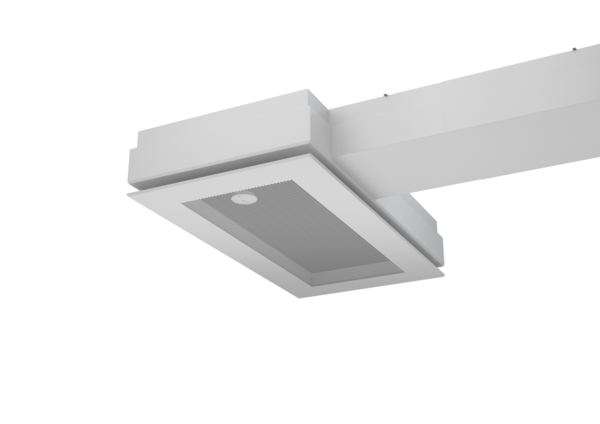

Installation, design module and connection casing When the valve kit is connected in, the design module and face plate are mounted. If the product is supplied with WISE SMB in the face plate, this is mounted before the face plate is mounted on the product. Cables to WISE SMB are then prerouted in the product and connected on the control unit. All that remains is to connect the plug in WISE SMB. Connection casing can be ordered as an accessory and then conceals the control equipment, water and air connections.
