ARCHISONIC®

Acoustic lamella

In combination with A11-C, A11-S, ALBATROS
High / Very high thermal comfort
Superior sound absorption values (class A)
Sustainable and high-quality acoustic material made of PET
Quick and easy installation
Formes: Wave, Straight and Edge
Colors: 28 (according to the technical catalogue)
Easy to combine with different lighting designs as well as other ceiling fixtures such as sprinklers and smoke detectors

Unique room ambience with stylish design

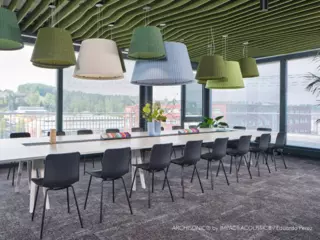

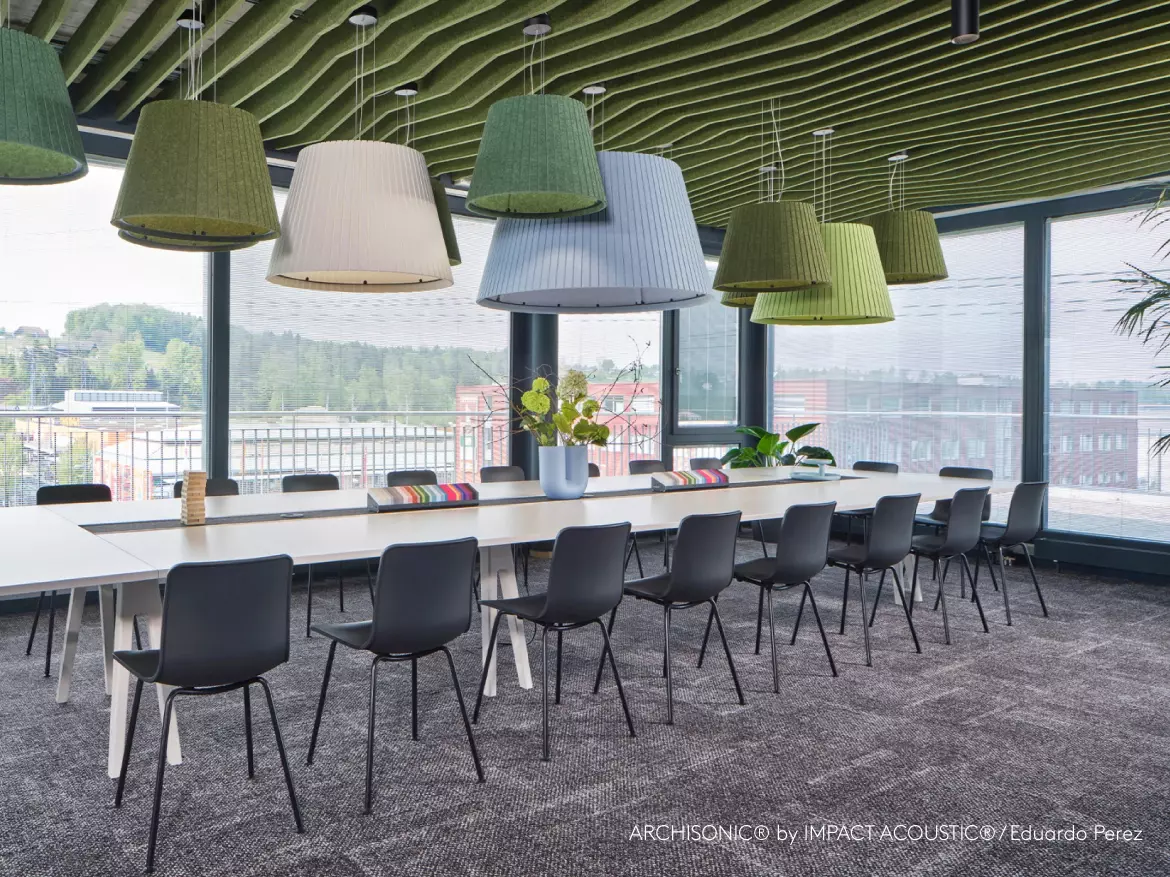

ARCHISONIC® + the A11 radiant metal ceiling system or ALBATROS high performance fin are visually and functionally impressive in equal measure. The system satisfies the requirements of a modern radiant ceiling when it comes to both energy efficiency and performance. The combination of the radiant ceiling system with the ARCHISONIC® acoustic baffle from Impact Acoustic® also forms a highly effective sound absorber across the entire frequency spectrum.

Whilst the felt panels (made from recycled PET bottles) primarily absorb sound in the high frequency range, the strength of the A11 radiant metal ceiling system lies in the low frequency range.

The combination solution can be used as an A11-C closed radiant ceiling system, A11-S sail or ALBATROS high performance fin. The acoustic baffles are available in a wide range of colours and in the versions Straight, Wave or Edge. They are installed on site on the underside of the metal ceiling using a simple suspension method.

System combination:

+ A11-S
+ A11-C
+ ALBATROS

Dimensions:

Single lamella:
- Lenght: 400 – 1800 mm
- Height: 150 mm
- Thickness: 24 mm (28 PET bottles/m²)
Special dimensions on request

Capacity water:

Cooling: up to 70 W/m² (ΔT: 8 K) A11-S, EN 14240:2004
Heating: up to 90 W/m² (ΔT: 15 K) A11-S, EN 14037:2016

Cooling: up to 60 W/m² (ΔT: 8 K) A11-C, EN 14240:2004
Heating: up to 80 W/m² (ΔT: 15 K) A11-C, EN 14037:2016

Cooling: up to 177 W/m² (ΔT: 8 K) ALBATROS, EN 14240:2004
Heating: up to 234 W/m² (ΔT: 15 K) ALBATROS, EN 14037:2016

Acoustics:

Sound absorption αw: up to 1,0
Sound absorption class A, EN ISO 11654

A11-C

Radiant metal ceiling

A11-S

Radiant metal ceiling sail

ALBATROS

High performance fin
