OPTI Y

High performance module

Very high heating and cooling capacity
With optional absorbers: Advanced sound absorption values (class B)
Powerful and energy efficient
Can be combined with any ventilation system
Easy construction
Visible or concealed installation possible, depending on visual preferences
Anodised profiles available
Easy to combine with different lighting designs between the fins, as well as other ceiling fixtures such as sprinklers and smoke detectors

Product Description

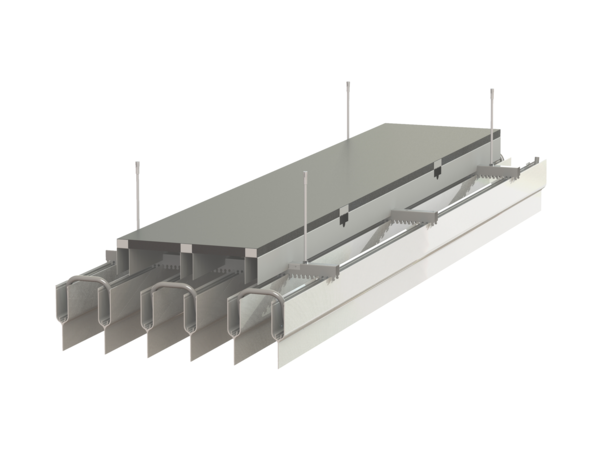

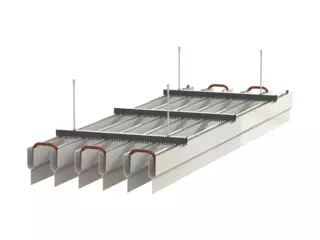

OPTI Y is a high capacity finned cooling system with an open design for cooling rooms, predominantly via free convection and radiation. Equipped with a fine corrugated surface, the finned cooling elements are suitable for rooms of all types and can be used as individually suspended ceiling modules, a flat finned ceiling or in a concealed installation above a grid ceiling.

Ceiling cooling provides comfortable room temperatures and improves the wellbeing of the people in the room.

It can be combined with any air ducting system. The aluminium finned ceiling can also cover the heating load.

Dimensions:

Installation height: min. 250 mm

Standard dimensions:
- Lenght: 600 – 2500 mm
- Height: 170 mm
- Width: 230 – 1080 mm
- Pipe rows: 3 – 10
- Tube distances: 100 / 150 mm
Special dimensions on request

Capacity water:

Cooling: up to 198 W/m² (ΔT: 8 K), EN 14240:2004
Heating: up to 230 W/m² (ΔT: 15 K), EN 14037:2016

Acoustics:

Optional:
Sound absorbing element with acoustic mat (mineral wool): αw up to 0.85
Sound absorption class B
