ALBATROS

High performance fin

Very high heating & cooling capacity
With optional absorbers: Advanced sound absorption values (class B)
Powerful and energy efficient
Exceptional design / performance concept
Easy installation
Anodised profiles available
Easy to combine with different lighting designs as well as other ceiling fixtures such as sprinklers and smoke detectors
Can be combined with ARCHISONIC®

Product Description

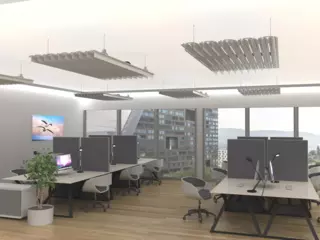

The ALBATROS high performance fin is a radiant ceiling system for rooms with a high cooling demand. It achieves a very high thermal performance with its slotted aluminium fins in the shape of a wing.

Through optional combination with the sound absorber structure, the ALBATROS also demonstrates advanced acoustic effectiveness.

The high cooling capacity per unit area (mainly convective) and the large open ceiling cross-section are particular features. Sprinklers, smoke detectors, air diffusers, lighting fixtures, etc. can be installed between the fins. Combination with any air ducting system is also possible. The modular ceiling system is suitable for covering the heating demand as well.

System combination:

+ ARCHISONIC®

Dimensions:

Installation height: min. 220 mm

Standard dimensions:
- Lenght: 600 – 2500 mm
- Width: 290 – 990 mm
- Height: 150 mm
Special dimensions on request

Capacity water:

Cooling: up to 241 W/m² (ΔT: 8 K), EN 14240:2004
Heating: up to 303 W/m² (ΔT: 15 K), EN 14037:2016

Acoustics:

Optional:
Sound absorber structure with acoustic mat (mineral wool): αw up to 0,85
Sound absorption class B, EN ISO 11654
