VARICOOL AP

Radiant ceiling jointless

High thermal comfort
Acoustically effective (class C)
Can be implemented as a closed ceiling or sail
Simple installation of the activation
Easy to combine with different lighting designs as well as other ceiling fixtures such as sprinklers and smoke detectors

Product Description

The jointless radiant ceiling VARICOOL AP is suitable for buildings where a combination of aesthetics and thermal comfort is called for. It is visually indistinguishable from a normal drywall ceiling. Fixtures and an individual ceiling design with 3D elements are possible.

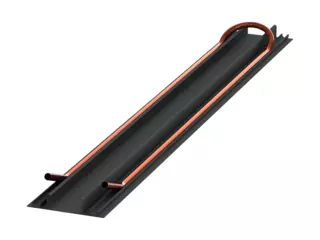

VARICOOL AP can also be used as a sail solution. The activation profile for jointless ceilings is adapted to the standard substructure and replaces parts of it. It is suitable for use with plasterboard, expanded glass granulate and aluminum honeycomb panels.

Dimensions:

Installation height: min. 120 mm (incl. plasterboard 10 mm)

Profile standard dimensions:
- Length: 1000 - 3000 mm
- Width: 135 mm
- Height: 27 mm
Special dimensions on request

Capacity water:

Cooling: up to 80 W/m² (ΔT: 8 K) Aluminum, EN 14240:2004
Heating: up to 120 W/m² (ΔT: 15 K) Aluminum, EN 14037:2016

Cooling: up to 50 W/m² (ΔT: 8 K) Plasterboard, EN 14240:2004
Heating: up to 80 W/m² (ΔT: 15 K) Plasterboard, EN 14037:2016

Acoustics:

Sound absorption αw: up to 0,70
Sound absorption class C, EN ISO 11654

Filter

Include Accessory documents

Document	Article	Document type	Date
VARICOOL AP_Radiant ceiling jointless (pdf 3.94MB)	VARICOOL AP	Technical catalogue	01/11/2023
Titan Sky R0 Leaflet (pdf 3.39MB)	TITAN Sky R0	Brochure	08/04/2022
EN_Titan SKY - QT - Light (pdf 1.62MB)	EN_Titan SKY - QT - Light	Technical catalogue	29/04/2022
