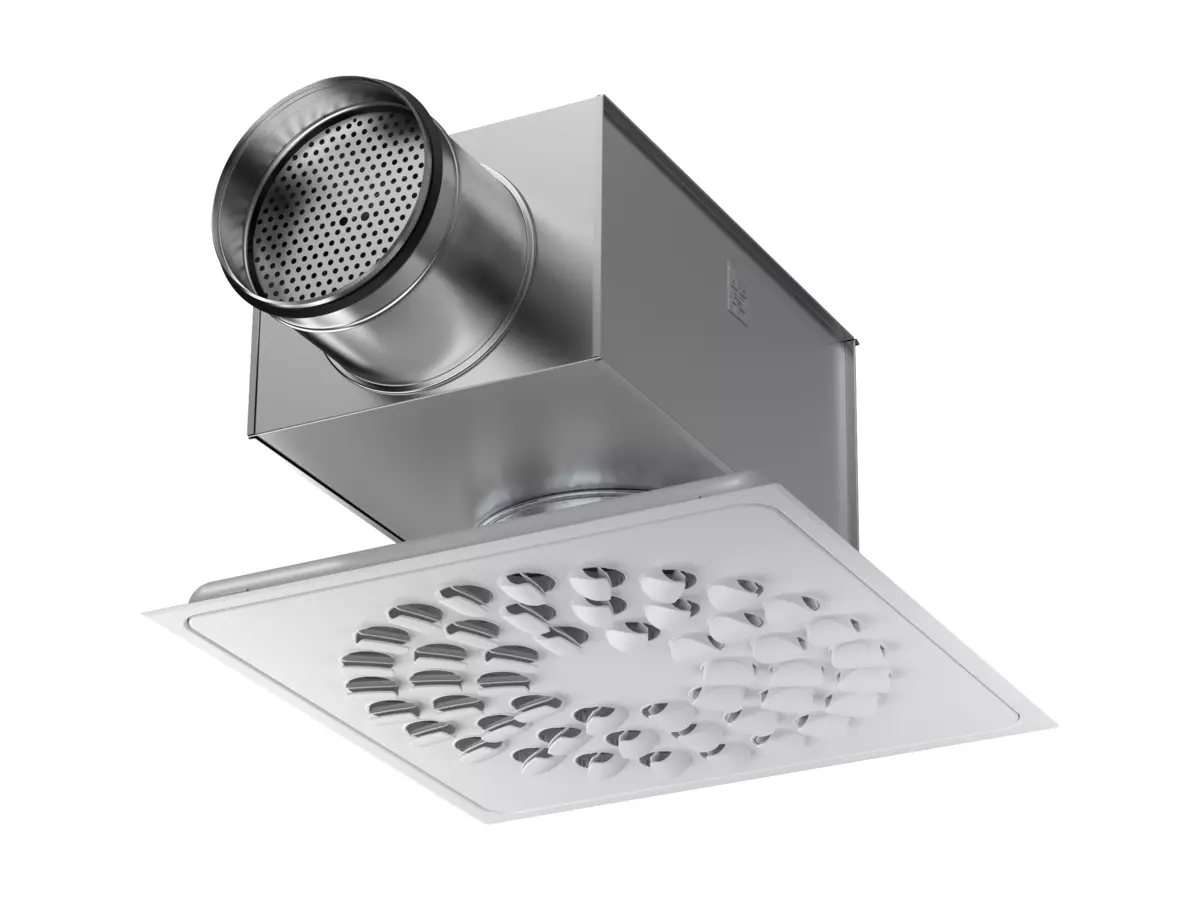

Product view with commissioning box - Circular nozzle pattern

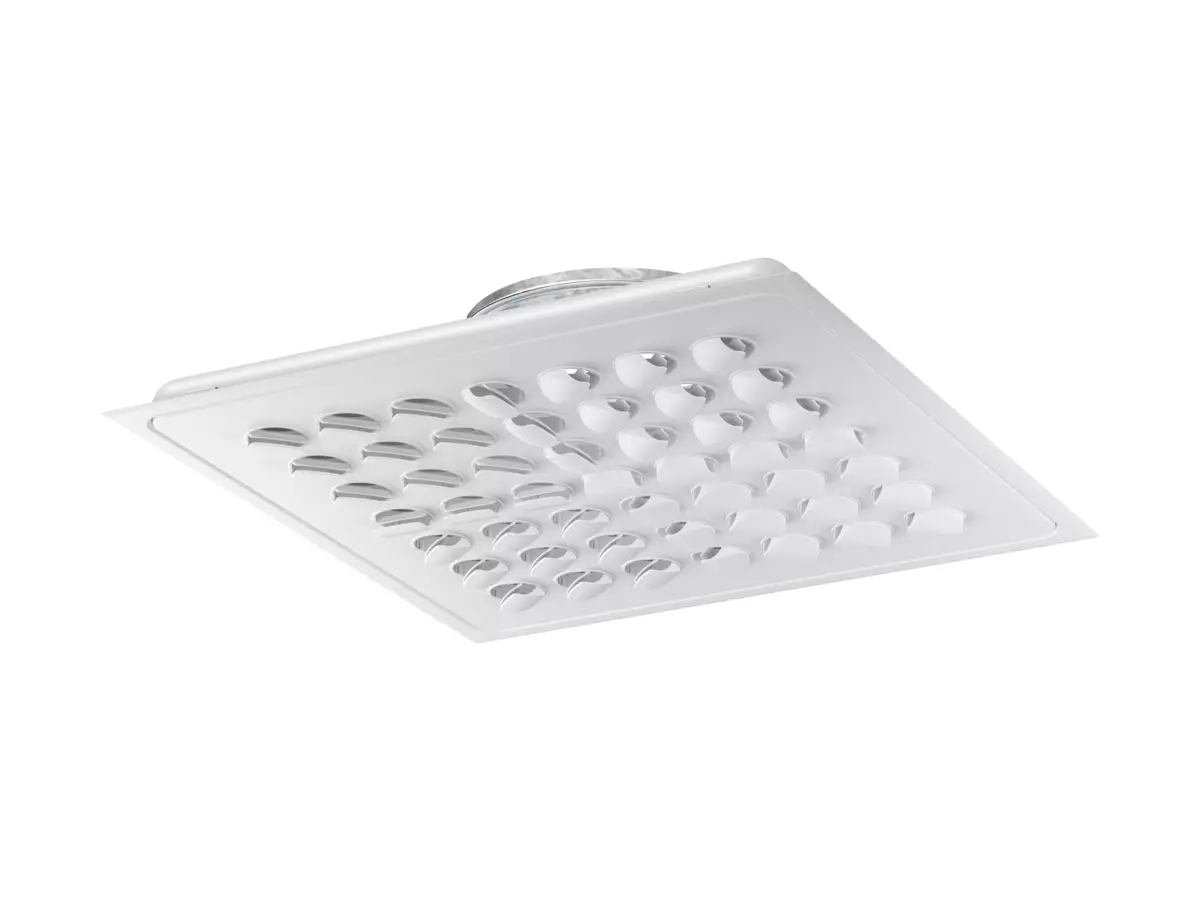

Product view - Rectangular nozzle pattern

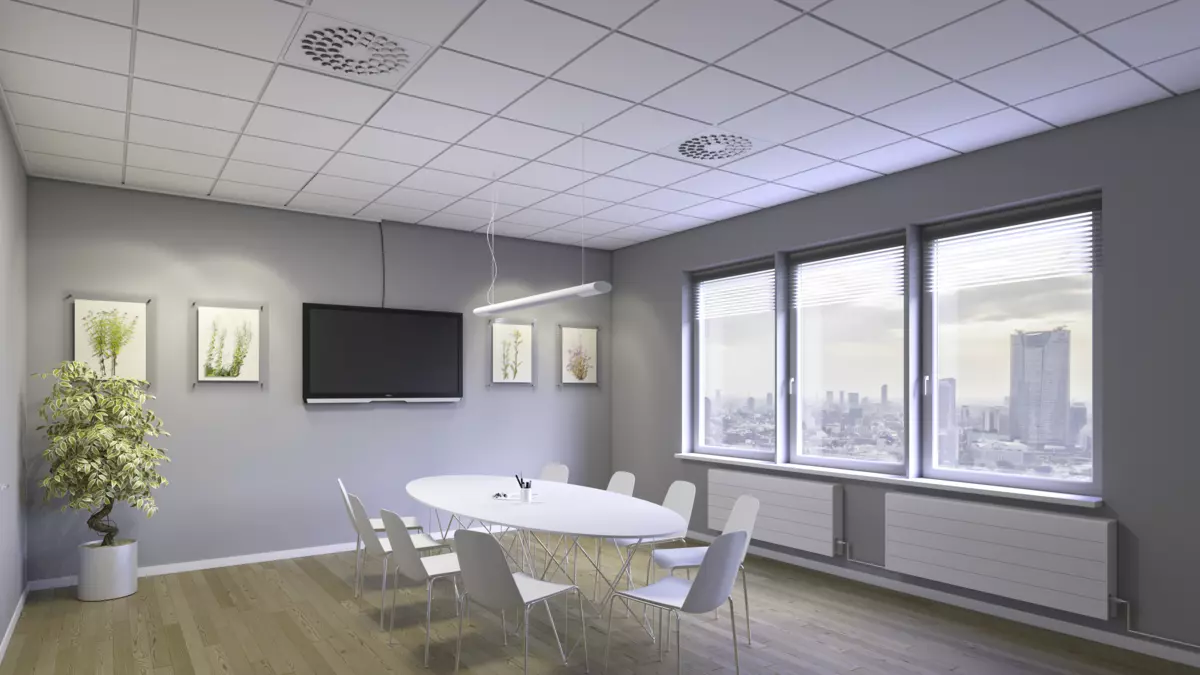

Product in context - Circular nozzle pattern

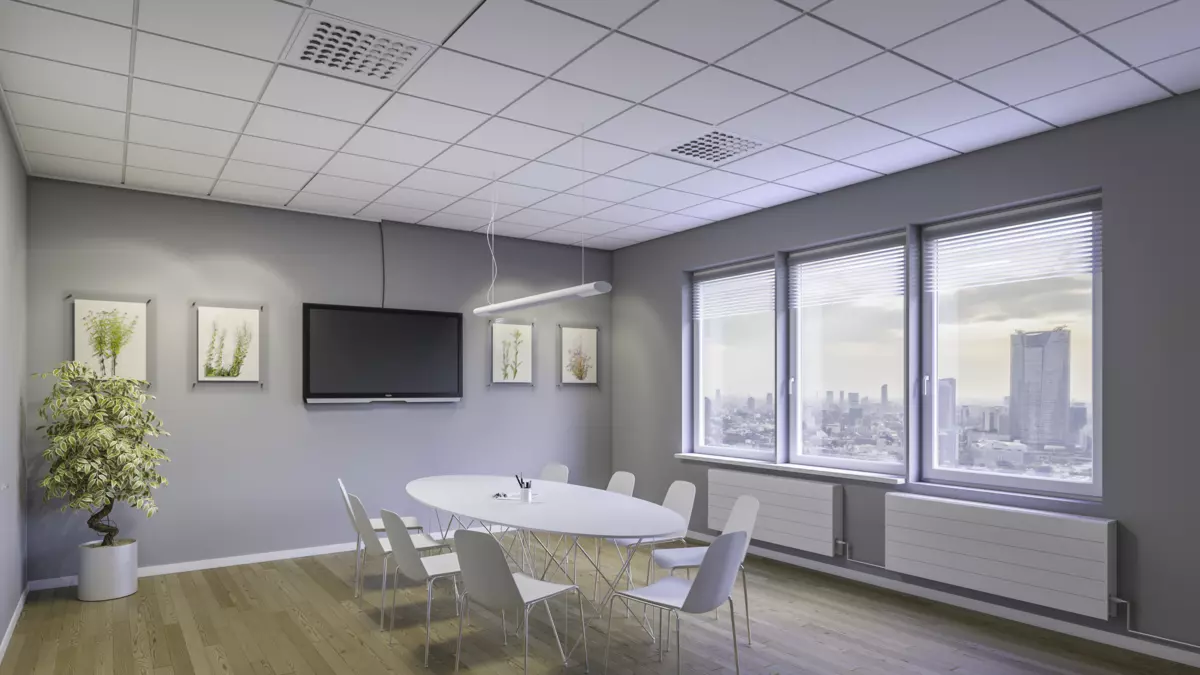

Product in context - Rectangular nozzle pattern

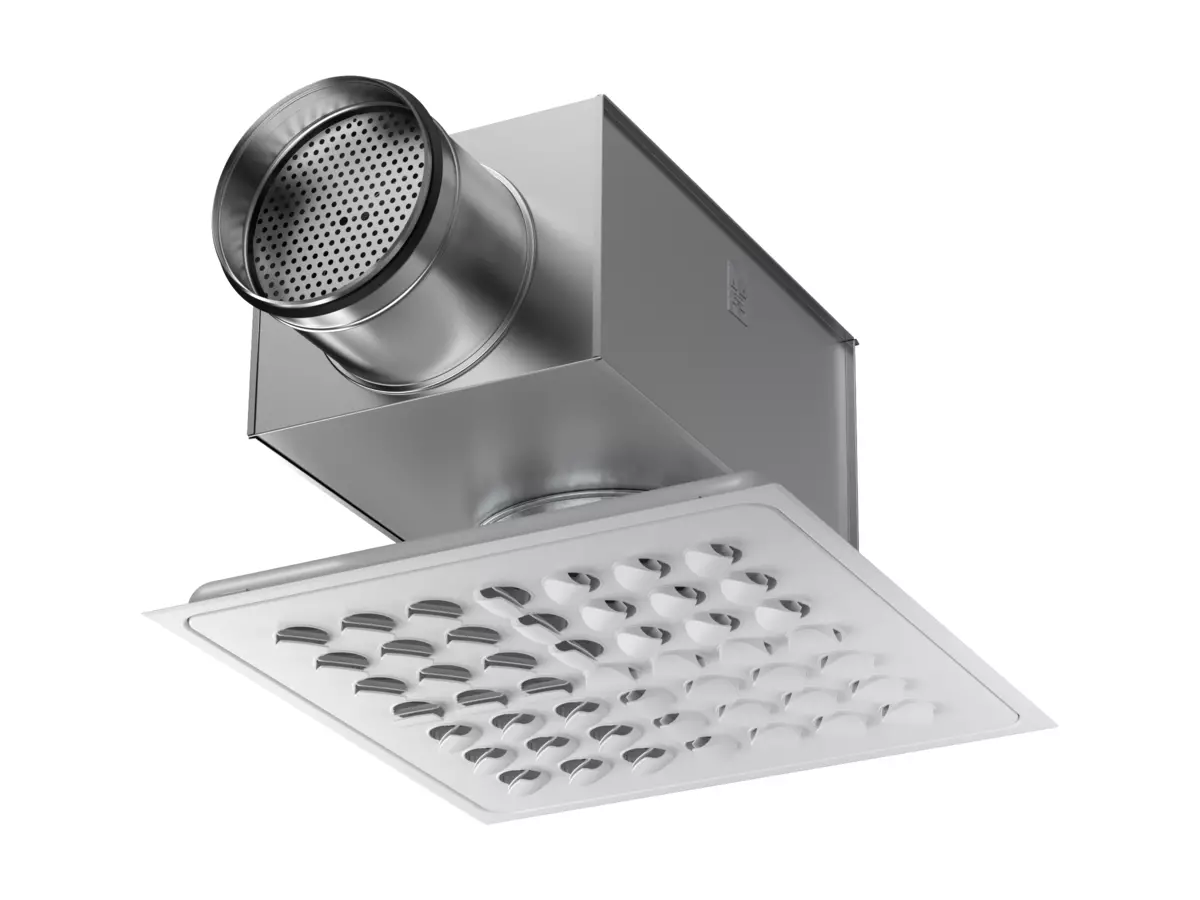

Product view with commissioning box - Rectangular nozzle pattern

Product view - Circular nozzle pattern

Product view with commissioning box - Circular nozzle pattern

Product view - Rectangular nozzle pattern

Product in context - Circular nozzle pattern

Product in context - Rectangular nozzle pattern

Product view with commissioning box - Rectangular nozzle pattern

EAGLE Ceiling

Square ceiling diffuser with nozzles for supply and extract air

Also available in extract air version
Available with circular (EAGLE CC) or rectangular (EAGLE CR) nozzle pattern
Suitable for VAV and DCV applications
Fast and simple installation and commissioning through Swegon Quick Access
Manages air flows substantially below room temperature (High DT)
Designed for modular suspended ceilings
Commissioning box with 1 or 2 changes in dimension between the inlet and outlet
Available in a version with low installation height
100% flexible spread pattern
ADAPTER for suspended ceiling system
Standard colour White RAL 9003
- 5 alternative standard colours
- Other colours upon request

Calculate with your requirements

Do you want to see the nozzle air diffuser in practice? Click here!

Technical description

Design

The square supply air diffuser EAGLE Ceiling consists of a diffuser backing box and a diffuser face. The diffuser face is equipped with rotatable nozzles and is available in two designs, with a circular nozzle pattern (EAGLE Ceiling Circular, called EAGLE CC) as well as with a rectangular nozzle pattern (EAGLE Ceiling Rectangular, called EAGLE CR). The diffuser face is hung on hinges on one side and secured by springs on the opposite side. This fastening system, called Quick Access, makes it simpler and quicker to open and close the diffuser face for installation, commissioning and cleaning.

The air diffuser is also available in a low version for installation in a ceiling void where low installation height is required. The air diffuser is then supplied without sleeve coupling (not size 400-600).

Material and surface treatment

The backing box and diffuser face are made of sheet steel. The connection branch is made of galvanized sheet steel. The interior and exterior of the air diffuser is painted.

Standard colour:
- White semi-gloss, lustre 40, RAL 9003/NCS S 0500-N
Alternative standard colours:
- Silver gloss, lustre 80, RAL 9006
- Grey aluminium gloss, lustre 80, RAL 9007
- White semi-gloss, lustre 40, RAL 9010
- Black semi-gloss, lustre 35, RAL 9005
- Grey semi-gloss, lustre 30, RAL 7037
Non-painted finish and other colours available on request.

The nozzles are made of plastic (PP-polypropylene).

AIR FLOW - SOUND PRESSURE ROOM (Lp10A) *)
EAGLE CR Size		25 dB(A)		30 dB(A)		35 dB(A)
EAGLE CR Size		l/s	m3/h	l/s	m3/h	l/s	m3/h
125-400		36	130	42	151	49	176
125-600		34	122	41	148	48	173
160-400		55	198	65	234	75	270
160-600		50	180	60	216	70	252
200-500		80	288	92	331	106	382
200-600		75	270	88	317	103	371
250-500		102	367	117	421	133	479
250-600		102	367	117	421	136	490
315-500		112	403	130	468	148	533
315-600		130	468	152	547	175	630
400-600		180	648	208	749	240	864

EAGLE CR Size	ALS Size	25 dB(A)		30 dB(A)		35 dB(A)
EAGLE CR Size	ALS Size	l/s	m3/h	l/s	m3/h	l/s	m3/h
125-400	100-125	27	97	32	115	38	137
125-600	100-125	27	97	32	115	38	137
160-400	125-160	44	158	52	187	61	220
160-600	125-160	42	151	50	180	60	216
200-500	160-200	64	230	75	270	88	317
200-600	160-200	62	223	72	259	86	310
250-500	200-250	88	317	102	367	119	428
250-600	200-250	88	317	102	367	119	428
315-500	250-315	104	374	120	432	138	497
315-600	250-315	119	428	137	493	160	576
400-600	315-400	165	594	190	684	220	792
*) Lp10A = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m² room absorption area. Data specified in the lower table applies to open damper when the commissioning box ALS is used.

ALS

Commissioning box for air diffusers

ADAPTER

Adapter for modular suspended ceiling systems

Filter

Include Accessory documents

Document	Article	Document type	Date
Commissioning guide - Air diffusers, VAV/CAV- & Commissioning dampers (pdf 7.75MB)	Air diffusers, VAV/CAV- & Commissioning dampers	IOM Manual	19/08/2024
Environmental Product Declaration (pdf 482.77kB)	Ceiling Collection	Quality	07/11/2023
Product description - Air diffusers & dampers (pdf 249.19kB)	Air diffusers & dampers	IOM Manual	19/10/2023
Overview - Air diffusers (pdf 3.34MB)	Air diffusers	Brochure	12/07/2022
Installation, commissioning, maintenance (pdf 3.48MB)	EAGLE CCa, CRa	IOM Manual	08/06/2022
Square ceiling diffuser with nozzles for supply air (pdf 4.63MB)	EAGLE CCa, CRa	Technical catalogue	28/09/2023
Quick guide - Ceiling Collection (pdf 1.03MB)	EAGLE C, COLIBRI C, HAWK C, LOCKZONE C, PELICAN C, VIREO C	Brochure	23/02/2021
Overview - Ceiling Collection (pdf 1.26MB)	EAGLE C, COLIBRI C, HAWK C, LOCKZONE C, PELICAN C, SWIFT C, VIREO C	Brochure	08/02/2022
Nano certificate (pdf 71.51kB)	Air diffusers	Quality	03/10/2023
