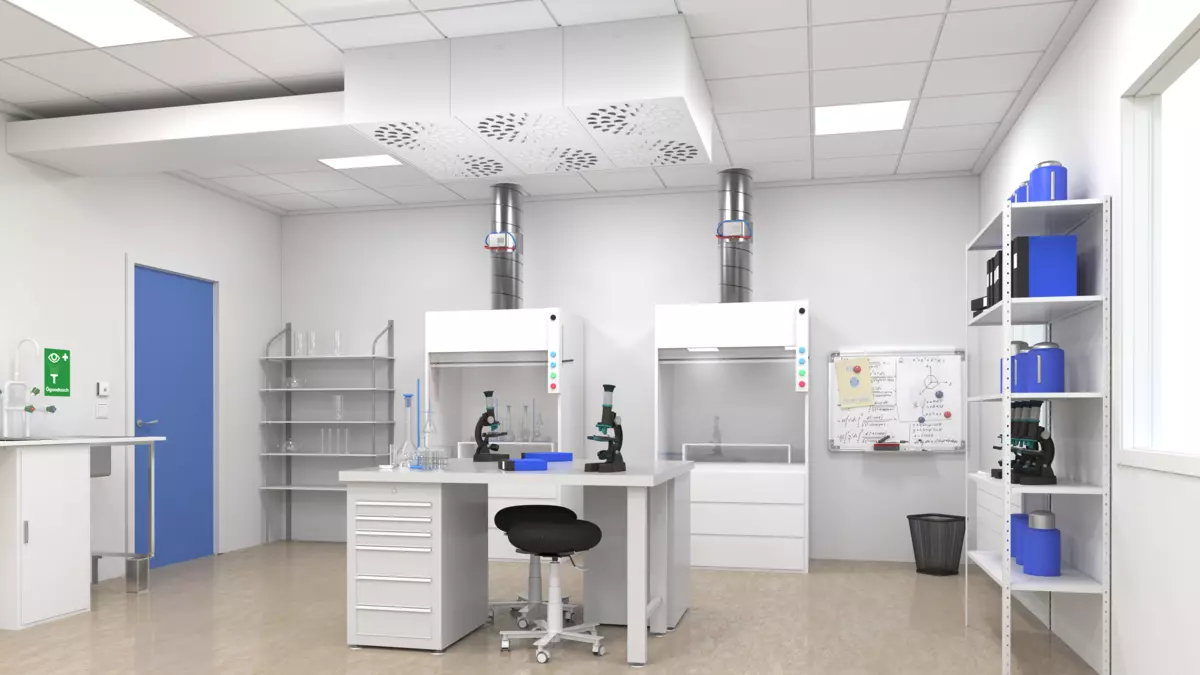

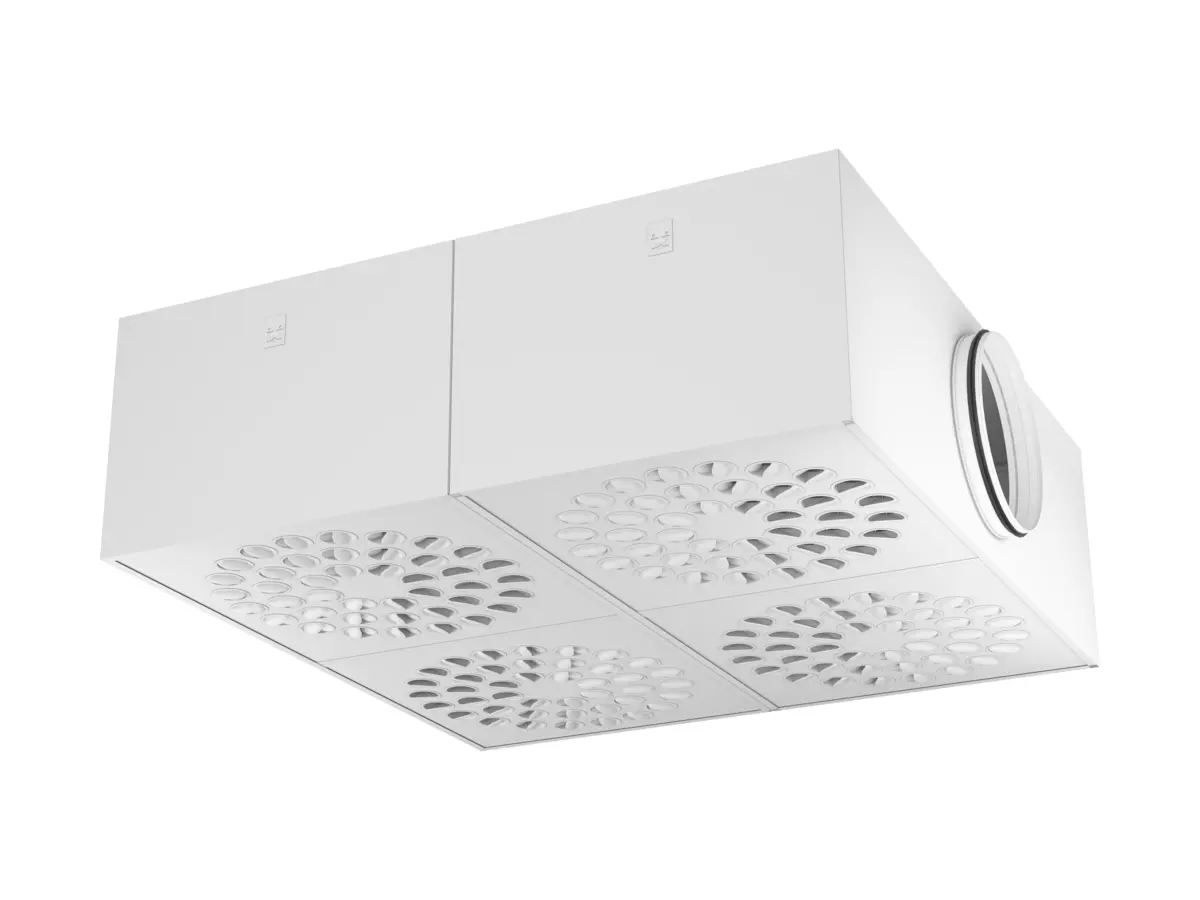

The supply air ceiling consists of a number of diffuser modules, equipped with nozzles, which are installed in a common backing box. The air diffuser modules are also equipped with the VariZon air distribution system to distribute the air uniformly.
The supply air ceiling is manufactured in galvanised sheet steel. The nozzles and distribution plates are made of plastic (PP Polypropylene). The entire unit is painted.
In addition to the standard sizes, this unit can be supplied in special dimensions and with different numbers of nozzles, etc. CONDOR is also available in galvanized finish. Please contact your nearest sales office for information.
| AIR FLOW - SOUND PRESSURE ROOM (Lp10A) *) | ||
| CONDOR Size | 30 dB(A) | |
| l/s | m3/h | |
| 1200-600-250 | 140 | 504 |
| 1800-600-315 | 200 | 720 |
| 2400-600-315 | 245 | 882 |
| 3000-600-400x250 | 310 | 1116 |
| 1200-1200-315 | 260 | 936 |
| 1800-1200-600x200 | 360 | 1296 |
| 2400-1200-600x300 | 490 | 1764 |
| 3000-1200-800x250 | 570 | 2052 |
| *) Lp10A = Sound pressure incl. A-filter with 4 dB room attenuation and 10 m² room absorption area. | ||
