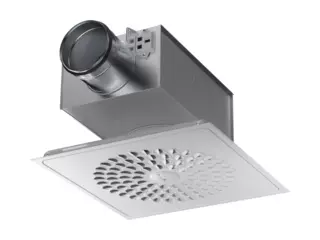

WISE Colibri Ceiling

Active air diffuser for Swegon’s WISE System for demand-controlled ventilation

Variable or constant flow regulation
Wireless communication via radio
Integrated sensor
Quick Access
Variants:
- Connection Ø160 or Ø250

Calculate with your requirements

Designed for demand-controlled ventilation of premises with a varying load.
Designed for comfort ventilation.
Moist, cold and aggressive environments must be avoided.
Designed for supply air systems.
Pressure-independent, but does require a minimum pressure drop equivalent to that of an open damper.
The minimum air flow must be considered during design.

Learn more about WISE.

Technical description

Design

Integrated air flow sensor.
Integrated duct temperature sensor.
Integrated room temperature sensor.
Integrated presence sensor.
Integrated LED.
Possibility to connect up to 3 valve actuators.
Connection: Ø160 or Ø250.
Always supplied with commissioning box and dust protection.
The air diffuser has Quick Access.
Aerodynamic designed nozzles.
The air diffuser has the square dimensions 595x595 mm, which makes it easy to fit in cassette suspended ceilings with the modular measurements 600x600 mm.

Material and surface treatment

Air diffuser

The connection spigot is made of galvanized sheet steel (Z275).
Other metal parts are power coated sheet steel.
Standard finish white RAL 9003, gloss 30.
Air nozzles are made of PP plastic (polypropylene).

Commissioning box

All sheet-metal parts are galvanized sheet steel (Z275).
Internal sound-absorbing material is made of PET (polyethylene terephthalate), fire rating: B-s1, d0.

AIR FLOW - SOUND LEVEL - COOLING CAPACITY
WISE Colibri Ceiling Size	Min*		50 Pa/ 30 dB (A)		P Δt=8K W	150 Pa/ 35 dB (A)		P Δt=8K W
WISE Colibri Ceiling Size	l/s	m3/h	l/s	m3/h	P Δt=8K W	l/s	m3/h	P Δt=8K W
160	5	18	72	260	694	75	270	772
250	10	36	105	378	1011	120	432	1156
*The product can regulate below Min. but the measurement accuracy cannot be guaranteed, see the product sheet for tolerances. NOTE for a high pressure drop across the product, it may be difficult to reach the min. flow, see the sizing diagrams in the product sheet.

Filter

Include Accessory documents

Document	Article	Document type	Date
Active air diffuser for Swegon’s WISE System for demand-controlled ventilation (WISE gen.2) (pdf 760.09kB)	WISE Colibri Ceiling a	Technical catalogue	21/08/2024
Instructions for Use (pdf 1.72MB)	WISE ALSa, WISE Colibri C SMBa, WISE Lockzone C SMBa, WISE Kite CC SMBa, WISE Kite CR SMBa	IOM Manual	20/08/2024
CE-Declaration (pdf 60.03kB)	WISE ALSa, WISE Colibri C SMBa, WISE Lockzone C SMBa, WISE Kite CR SMBa, WISE Kite CC SMBa	Quality	21/08/2024
