GLOBAL PX LP OUT

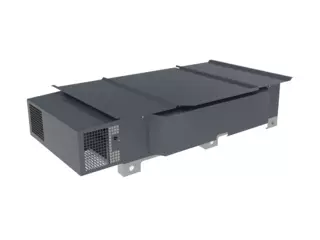

Air handling unit with counterflow plate heat exchanger and side duct connections, with controls.

Max. air flow 1.750 m³/h (Ecodesign)
Plate heat exchanger
Integrated heating available as an accessory - electrical/water (factory installed)
Placement outdoors
Side connection
Right hand version is available for size 8 and 10 to match different air flow directions
With controls and HMI
Certified by Eurovent

Product Description

Low-profile air handling unit designed for installation oudoors, on flat roofs. Two different fan types available (Composite or aluminum).

	Dimensions				Air flow
	Width mm	Height mm	Length mm	Weigth kg	Min air flow m³/s (Ecodesign)	Max air flow m³/s (Ecodesign)	Min air flow m³/h (Ecodesign)	Max air flow m³/h (Ecodesign)
GLOBAL LP 02	890	350	1300	100	0.03	0.15	100	550
GLOBAL LP 04	1100	350	1300	125	0.03	0.18	100	650
GLOBAL LP 06	1050	435	2100	180	0.06	0.28	200	1000
GLOBAL LP 08 left & right	1300	435	2100	210	0.06	0.39	200	1400
GLOBAL LP 10 left & right	1600	435	2100	250	0.07	0.49	250	1750
GLOBAL LP 12	1700	510	2250	300	0.08	0.58	300	2100
GLOBAL LP 13	1700	510	2250	300	0.08	0.71	300	2550
GLOBAL LP 14	1940	510	2250	350	0.08	0.79	300	2850
GLOBAL LP 16	1935	660	2900	500	0.11	0.92	400	3300
GLOBAL LP 18	1935	660	2900	500	0.11	0.97	400	3500
GLOBAL LP OUT 08	275	590	2540	275	0.06	0.39	200	1400
GLOBAL LP OUT 10	335	590	2540	335	0.07	0.5	250	1800

Filter

Include Accessory documents

Document	Article	Document type	Date
Wiring diagram (GLOBAL TAC5) (pdf 8.64MB)	GLOBAL TAC5	Engineering	18/06/2021
GLOBAL - TAC5 vs TAC6 (pdf 139.54kB)	GLOBAL TAC5 vs TAC6	Others	10/05/2021
GLOBAL - Installation manual (pdf 14.3MB)	GLOBAL TAC6	IOM Manual	25/02/2022
GLOBAL Operation manual (pdf 6.22MB)	GLOBAL TAC6	IOM Manual	05/04/2023
SAT MODBUS TABLE TAC6 (pdf 865.02kB)	SAT	IOM Manual	12/11/2021
Installation manual adjustable surface thermostat (pdf 524.02kB)	TAC6	IOM Manual	05/08/2024
Eurovent certificate (pdf 195.98kB)	GLOBAL/ESENSA	Quality	30/04/2024
REACH certification (pdf 450.92kB)	GLOBAL	Quality	23/07/2021
Matildas external document en	123	Engineering	03/08/2025
Quick Guide - AHU (pdf 4.77MB)	GOLD, SILVER C, COMPACT, GLOBAL, ESENSA, CLASS UNIT, CASA, MURAL	Brochure	25/06/2024
Installation manual circular damper (pdf 1.94MB)	ESENSA/GLOBAL	IOM Manual	22/07/2024
EC Declaration of conformity GLOBAL-MURAL-CLASSUNIT (pdf 123.92kB)	GLOBAL-MURAL-CLASS UNIT	Quality	21/05/2021
Wiring diagram (GLOBAL TAC6) (pdf 11.28MB)	GLOBAL TAC6	Engineering	03/04/2024
GLOBAL - Installation and maintenance instructions (pdf 19.99MB)	GLOBAL TAC5	IOM Manual	28/10/2021
Installation manual Regulation TAC5 + MODBUS TABLE (pdf 1.29MB)	TAC5	IOM Manual	24/09/2021
VDI6022 Declaration (pdf 291.99kB)	GLOBAL	Quality	16/11/2021
