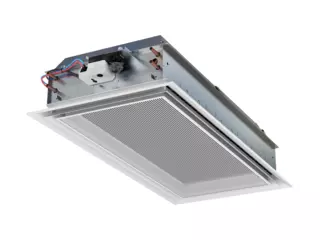

Product view, Air connection=Side 4, L=1200

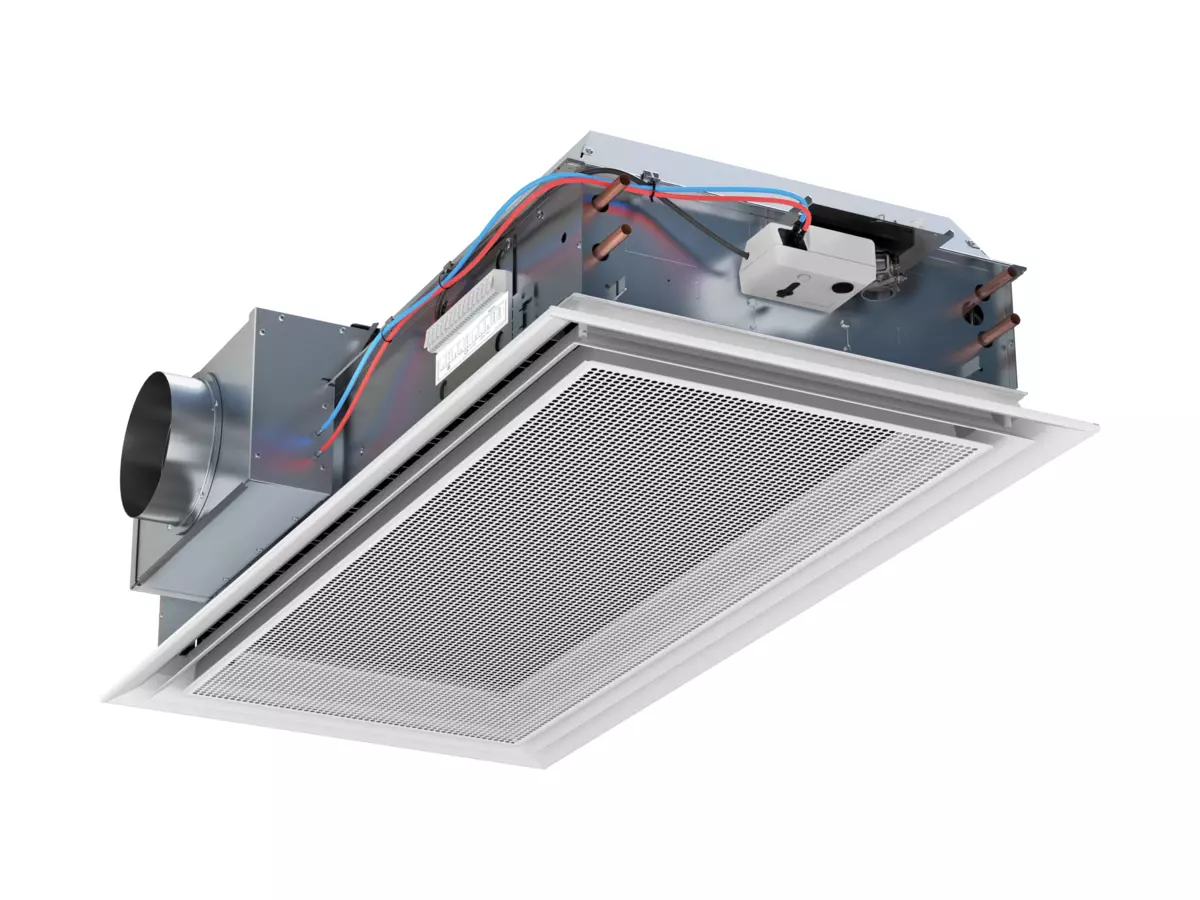

Inverted product view, Air connection=Side 4, L=1200

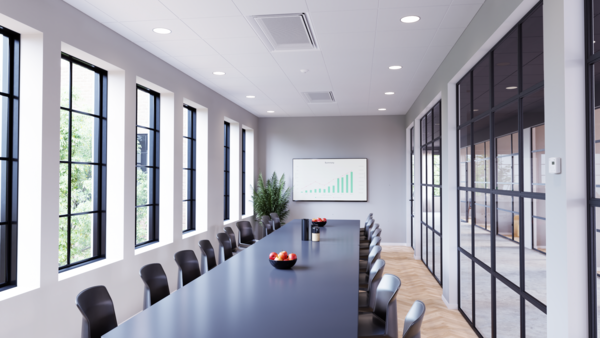

Product in context
REACT Parasol Zenith
REACT PARASOL Zenith is a high-performance 4-way distribution comfort module-style chilled beam for cooling, heating, and ventilation in Variable Air Volume (VAV) systems.
- Chilled beam with induced air opening in the bottom and 4-way horizontal discharge.
- Provides ventilation, cooling, and/or heating
- Designed to be installed in ceilings.
- Internal damper with 24-volt damper actuator for integration with room controls or BMS.
- The product is equipped with an actuator for flow adjustment, terminal block and air connection for flow measurement
- Simple commissioning because the flow measurement is performed directly in the air connection
- Pressure-independent flow regulation
- Can easily be integrated by a control equipment supplier via Modbus communication
- Large span between the lowest and highest air flow
- Few variants for easier sizing and variable air flow control
- Optimised for low energy consumption
- Manages high air flow at low driving pressure
- Easy installation on account of low weight, compact dimensions and optional air connections on short or long sides
- Hygiene design as an option for hospital applications
- Standard colour White RAL 9003
- Other colors upon request
REACT PARASOL Zenith is a high-performance 4-way distribution comfort module-style chilled beam for cooling, heating, and ventilation in Variable Air Volume (VAV) systems. Featuring flow measurement and an integrated damper with a 24v actuator, it controls air volume flow over a very wide span of inlet pressures. Variable geometry nozzles ensure high ventilation turndown ratios while supporting induction cooling and heating.
